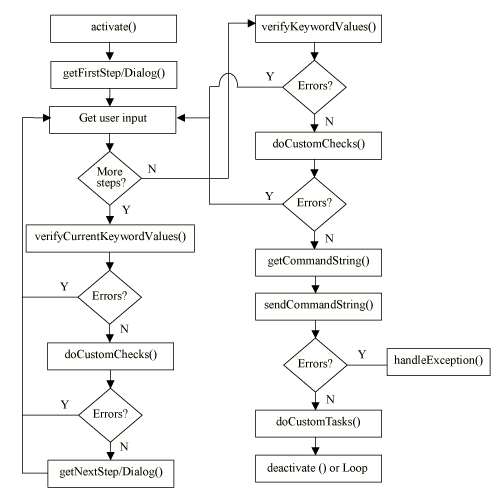

The verifyCurrentKeywordValues method calls the verify method for each keyword associated with the current step or dialog box, and the method posts an error dialog box if necessary. The verifyCurrentKeywordValues method returns True if no errors were encountered; otherwise, it returns False and terminates further processing.

The doCustomChecks method has an empty implementation in the base class. You can redefine this method to perform any additional checking of keyword values, typically to perform range checking or to check some interdependency between values. The doCustomChecks method should return True if no errors were encountered; otherwise, it should return False so that further command processing will be terminated. The doCustomChecks method is called by the mode during step and dialog box processing and during command processing.

The verifyKeywordValues method calls the verify method for each keyword of each command associated with the mode and posts an error dialog box if necessary. The verifyKeywordValues method returns True if no errors were encountered; otherwise, it returns False and terminates further command processing.

The doCustomChecks method has an empty implementation in the base class. You can redefine this method to perform any additional checking of keyword values, typically to perform range checking or to check some interdependency between values. The doCustomChecks method should return True if no errors were encountered; otherwise, it should return False so that further command processing will be terminated. The doCustomChecks method is called by the mode during step and dialog box processing and during command processing.

The following example shows how you can use the doCustomChecks method to find an invalid value and, in response, to post an error dialog box and put the cursor into the appropriate widget. If the keyword is connected to a text field in the dialog, the onKeywordError method finds the text field widget, select its contents, and places the focus on the widget.

def doCustomChecks(self):

    if self.lengthKw.getValue() >= 1000:
        showAFXErrorDialog(self.getCurrentDialog(),
            'Length must be less than 1000.')
        self.getCurrentDialog().onKeywordError(self.lengthKw)
        return False

The issueCommands method is responsible for constructing the command string, issuing it to the kernel, handling any exceptions from the command, and deactivating the mode if necessary. The issueCommands method calls the following methods:

• getCommandString: This method returns a string that represents the commands collected from each command associated with the mode. Required keywords are always sent with the command, but optional keywords are sent only if their value has changed. The commands are issued to the kernel in the same order as the commands were constructed in the mode. If your command does not fit the standard style of the command generated by the mode, you can redefine this method to generate your own command string.

• sendCommandString: This method takes the command string returned from the getCommandString method and sends it to the kernel for processing. You should not overwrite this method or your mode may not perform properly.

• doCustomTasks: This method has an empty implementation in the base class. You can redefine this method to perform any additional tasks required after a command is processed by the kernel.

The issueCommands method also controls the writing of the command to the replay and journal files. The GUI infrastructure always calls issueCommands with writeToReplay=True and writeToJournal=False. If you want to change the behavior, you can overwrite this method and specify different values for the arguments. If you overwrite the issueCommands method you must specify both arguments, and you should always call the base class method from your method or your mode may not perform properly. For example:

def issueCommands(self, writeToReplay, writeToJournal):
    AFXForm.issueCommands(self, writeToReplay=True,
        writeToJournal=True)

In most cases, you do not need to call issueCommands since the infrastructure will call it automatically; however, if you interrupt the normal flow of mode processing, you must call issueCommands to complete the processing. For example, if before issuing a command you want to ask the user for permission to execute the command, you can post a warning dialog box from the doCustomChecks method. In this example you must return False from the doCustomChecks method to stop the command processing. The application will then wait for the user to make a selection from the warning dialog box. When the user clicks a button in the warning dialog box, you must catch the message sent by the dialog box to your form. If the user clicks Yes, you should continue the command processing as shown in the following example:

class MyForm(AFXForm):

    ID_OVERWRITE = AFXForm.ID_LAST

    def __init__(self, owner):

        AFXForm.__init__(self, owner)
        FXMAPFUNC(self, SEL_COMMAND,
            self.ID_OVERWRITE, MyForm.onCmdOverwrite)
        ...

    def doCustomChecks(self):

        import os
        if os.path.exists(self.fileNameKw.getValue()):
            db = self.getCurrentDialog()
            showAFXWarningDialog(db,
                'File already exists.\n\nOK to overwrite?',
                AFXDialog.YES|AFXDialog.NO, self,
                self.ID_OVERWRITE)
            return False

        return True

    def onCmdOverwrite(self, sender, sel, ptr):

        if sender.getPressedButtonId() == \
            AFXDialog.ID_CLICKED_YES:
                self.issueCommands(writeToReplay=True,
                    writeToJournal=True)
        return 1

Normally the GUI infrastructure takes care of sending commands to the kernel automatically when the mode is committed. If you need to issue a command before the mode is committed, you can call issueCommands yourself. In other cases you may want to send a command without using the form's infrastructure. You can send a command string directly to the kernel using the sendCommand(cmd) method. For more information, see “Executing commands,” Section 6.3.

After the mode has issued its commands successfully, it will call the deactivate method to perform various cleanup tasks, unless the mode loops or an “Apply” button was pressed, in which case the mode returns to wait for further input from the user. If you need to perform your own cleanup tasks for your mode, you can overwrite this method; but you should be sure to call the base class method as well to ensure that the mode is terminated properly as shown in the following example.

def deactivate(self):

    # Do your processing here

    # Call the base class method
    AFXForm.deactivate(self)

If you need to cancel a mode programmatically, as opposed to the user clicking on a Cancel button, you can call the mode's cancel method, taking the default values for its arguments. The cancel method will call the deactivate method, so the mode's cleanup tasks will still be performed.

If you want to give the user a chance to confirm whether a mode should be cancelled, you can have a bailout dialog invoked. If you are writing a form mode, you can specify the bailout flag in the constructor of your dialog box. If you are writing a procedure mode, you should write the checkCancel method. The return value of the checkCancel method determines if the user will be prompted for confirmation when the procedure is cancelled. For example:

def checkCancel(self):

    if self.getCurrentStep() == self.step1:
        # If cancelled in the first step, do  not
        # ask the user for confirmation to cancel.
        return AFXProcedure.BAILOUT_OK
    else:
        # After the first step, ask the user for
        # confirmation before cancelling.
        return AFXProcedure.BAILOUT_NOTOK

By default when the context changes in Abaqus/CAE, all forms are cancelled; for example, when the user opens a new database or changes the current model. If you have a form mode that you do not want to be cancelled, you can overwrite the base class implementation in your form code as follows:

def okToCancel(self):
    return False
