AFXDialog

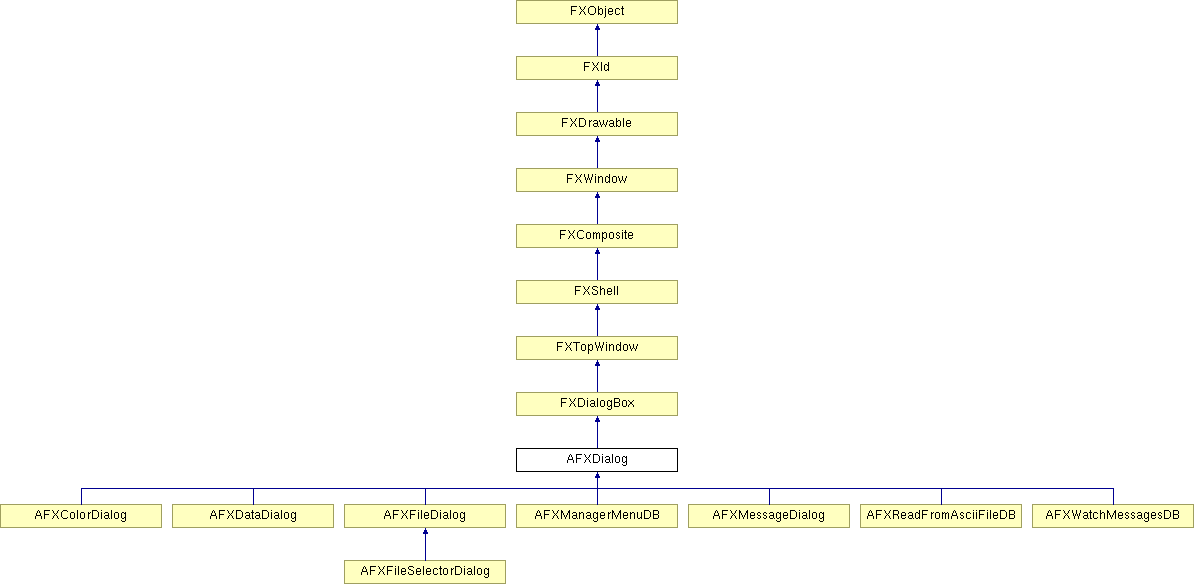

This class is the base class for all Abaqus GUI Toolkit dialog boxes.

AFXDialog(title, actionButtonIds=0, opts=DIALOG_NORMAL, x=0, y=0, w=0, h=0)

Constructor that creates a dialog box that always occludes the main window when overlapping with the main window.

Argument	Type	Default	Description
title	String		Title string.
actionButtonIds	Int	0	ID's of action buttons to be created.
opts	Int	DIALOG_NORMAL	Options and hints.
x	Int	0	X coordinate of origin.
y	Int	0	Y coordinate of origin.
w	Int	0	Width of the widget.
h	Int	0	Height of the widget.

AFXDialog(owner, title, actionButtonIds=0, opts=DIALOG_NORMAL, x=0, y=0, w=0, h=0)

Constructor that creates a dialog box that always occludes its owner widget when overlapping with the widget.

Argument	Type	Default	Description
owner	FXWindow		Owner widget.
title	String		Title string.
actionButtonIds	Int	0	ID's of action buttons to be created.
opts	Int	DIALOG_NORMAL	Options and hints.
x	Int	0	X coordinate of origin.
y	Int	0	Y coordinate of origin.
w	Int	0	Width of the widget.
h	Int	0	Height of the widget.

AFXDialog(app, title, actionButtonIds=0, opts=DIALOG_NORMAL, x=0, y=0, w=0, h=0)

Constructor that creates a dialog box that may be occluded by any other windows of the application.

Argument	Type	Default	Description
app	FXApp		Application.
title	String		Title string.
actionButtonIds	Int	0	ID's of action buttons to be created.
opts	Int	DIALOG_NORMAL	Options and hints.
x	Int	0	X coordinate of origin.
y	Int	0	Y coordinate of origin.
w	Int	0	Width of the widget.
h	Int	0	Height of the widget.

appendActionButton(text, tgt, sel)

Adds a custom action button in the action area of the dialog box.

Argument	Type	Default	Description
text	String		Label string.
tgt	FXObject		Message target.
sel	Int		Message ID.

appendActionButton(buttonID)

Adds a standard action button in the action area of the dialog box.

Argument	Type	Default	Description
buttonID	ButtonID		Button ID.

bailout()

Performs checks to determine whether it is OK to cancel the dialog box. The implementaton of this class always returns True, and the derived class should reimplement this method to perform specific checks.

Reimplemented in AFXDataDialog.

create()

Creates the dialog box.

Reimplemented from FXTopWindow.

createButton(parent, text, icon, tgt, sel, opts)

Creates an action area button.

Argument	Type	Default	Description
parent	FXComposite		Parent widget.
text	String		Label string.
icon	FXIcon		Icon.
tgt	FXObject		Message target.
sel	Int		Message ID.
opts	Int		Options and hints.

getActionButton(sel)

Returns the action button with the specified message ID; returns 0 if none of the action buttons has the message ID.

Argument	Type	Default	Description
sel	Int		Message ID.

getInitialFocusWidget()

Returns the widget that will receive the initial focus.

getUnpostHints()

Returns the action that the poster should perform on this dialog box when it is unposted. Possible return values are: DIALOG_UNPOST_DELETE - delete the C++ dialog box object together with the associated window. (default) DIALOG_UNPOST_DESTROY - keep the C++ dialog box object, but destroy the associated window to release resources. DIALOG_UNPOST_NOTHING - do nothing.

hide()

Unpost the dialog box.

Reimplemented from FXTopWindow.

Reimplemented in AFXManagerMenuDB, and AFXMessageDialog.

onKeywordError(kwd)

Handles the error that occurs when the given keyword or target contains invalid contents. This method will select the contents of the widget that has the keyword or target as its message target.

Argument	Type	Default	Description
kwd	FXObject		Object that contains invalid contents.

onTableError(tableKwd, row, col)

Handles the error that occurs when the given table keyword or target contains an invalid element. This method will select the contents of the widget that has the keyword or target as its message target.

Argument	Type	Default	Description
tableKwd	FXObject		Object that contains invalid element.
row	Int		Row index.
col	Int		Column index.

onTupleError(tupleKwd, index)

Handles the error that occurs when the given tuple keyword or target contains an invalid element. This method will select the contents of the widget that has the keyword or target as its message target.

Argument	Type	Default	Description
tupleKwd	FXObject		Object that contains invalid element.
index	Int		Element index.

selectContents(widget)

Selects the contents of the given widget.

Argument	Type	Default	Description
widget	FXWindow		Widget to select.

selectTableElement(widget, row, col)

Selects the given (row,col) element in the 2D array of elements displayed by the given widget.

Argument	Type	Default	Description
widget	FXWindow		Widget to select.
row	Int		Row index.
col	Int		Column index.

selectTupleElement(widget, index)

Selects the element at the given index in the sequence of elements displayed by the given widget.

Argument	Type	Default	Description
widget	FXWindow		Widget to select.
index	Int		Element index.

setInitialFocusWidget(w)

Sets the widget that will receive the initial focus.

Argument	Type	Default	Description
w	FXWindow		Widget that will receive the initial focus.

setOnPopdownTarget(target)

Sets the object to be notified when the dialog box is unposted.

Argument	Type	Default	Description
target	FXObject		Object to be notified when the dialog box is unposted.

setUnpostHints(hints)

Sets the action that the poster should perform on this dialog box when it is unposted.

Argument	Type	Default	Description
hints	Int

show()

Posts the dialog box.

Reimplemented from FXTopWindow.

Reimplemented in AFXFileDialog, and AFXMessageDialog.

showModal(occludedWindow=None)

Posts the dialog box as a modal dialog box. The dialog box is centered against the given widget or its owner widget if 0 is given.

Argument	Type	Default	Description
occludedWindow	FXWindow	None	Widget to be occluded (0 for the owner widget).

Class flags

Message ID's.

ID_CLICKED_OK	OK button ID.
ID_CLICKED_CONTINUE	Contiue button ID.
ID_CLICKED_YES	Yes button ID.
ID_CLICKED_YES_TO_ALL	Yes to All button ID.
ID_CLICKED_APPLY	Apply button ID.
ID_CLICKED_DEFAULTS	Defaults button ID.
ID_CLICKED_NO	No button ID.
ID_CLICKED_CANCEL	Cacncel button ID.
ID_CLICKED_DISMISS	Dismiss button ID.

Standard action button ID's.

APPLY	Adds an Apply button to action area.
CANCEL	Adds a Cancel button to action area.
CONTINUE	Adds a Continue button to action area.
DEFAULTS	Adds a Defaults button to action area.
DISMISS	Adds a Dismiss button to action area.
NO	Adds a No button to action area.
OK	Adds an OK button to action area.
YES	Adds a Yes button to action area.
YES_TO_ALL	Adds a Yes to All button to action area.

Global flags

Flags for dialog box options.

DIALOG_ACTIONS_BOTTOM	Creates the action area horizontally at the bottom of the dialog box.
DIALOG_ACTIONS_RIGHT	Creates the action area vertically at the right side of the dialog box.
DIALOG_ACTIONS_NONE	Do not create the action area.
DIALOG_ACTIONS_SEPARATOR	Creates a separator in the action area.
DIALOG_UNPOST_DELETE	Deletes the dialog box when unposted.
DIALOG_UNPOST_DESTROY	Destroys the dialog box when unposted.
DIALOG_UNPOST_NOTHING	Do nothing when unposted.
DIALOG_NORMAL	Default dialog box options.
