Abaqus GUI Toolkit Reference Guide


AFXTarget

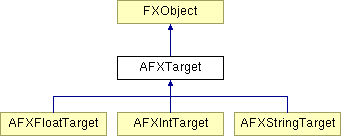

This class is the base class for all target objects.


AFXTarget()

Constructor.


connect(value)

Associates the data with a string variable.

ArgumentTypeDefaultDescription
valueString Variable to be associated with.


connect(value)

Associates the data with a floating-point variable.

ArgumentTypeDefaultDescription
valueFloat Variable to be associated with.


connect(value)

Associates the data with an integer variable.

ArgumentTypeDefaultDescription
valueInt Variable to be associated with.


getSelector()

Returns the message ID of this target object.


getTarget()

Returns the target of this target object.


getType()

Returns the target type; this method is deprecated in Abaqus 6.6, and its use should be replaced by getTypeName().


getTypeName()

Returns the name of the target type.

Implemented in AFXFloatTarget, AFXIntTarget, and AFXStringTarget.


setSelector(msgId)

Sets the message ID of this target object.

ArgumentTypeDefaultDescription
msgIdInt Message ID.


setTarget(target)

Sets the target of this target object.

ArgumentTypeDefaultDescription
targetFXObject Target.


Class flags

Message ID's.

ID_LAST

Last ID.

Flags for the type of target.

UNSPECIFIED

Unspecified.

INT

Integer.

FLOAT

Float.

STRING

String.
