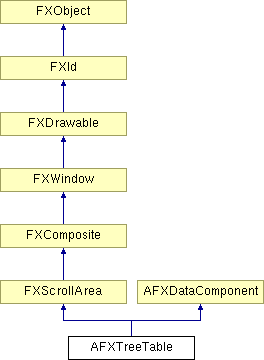

AFXTreeTable

This class combines a tree widget with a table widget to allow associating a row of data with an item in a tree.

AFXTreeTable(p, numVisItems, numVisColumns, numColumns, tgt=None, sel=0, opts=AFXTREETABLE_NORMAL, x=0, y=0, w=0, h=0)

Constructor.

Argument	Type	Default	Description
p	FXComposite		Parent widget.
numVisItems	Int		Number of items to display.
numVisColumns	Int		Number of columns in the table to display.
numColumns	Int		Number of columns in the table.
tgt	FXObject	None	Message target.
sel	Int	0	Message ID.
opts	Int	AFXTREETABLE_NORMAL	Options and hints.
x	Int	0	X coordinate of the origin.
y	Int	0	Y coordinate of the origin.
w	Int	0	Width of the table widget.
h	Int	0	Height of the table widget.

addItemAfter(other, text, oi=None, ci=None, notify=False)

Appends a new tree item with the given text and optional icon after the other tree item.

Argument	Type	Default	Description
other	FXTreeItem
text	String
oi	FXIcon	None
ci	FXIcon	None
notify	Bool	False

addItemAfter(other, item, notify=False)

Appends the new tree item after the other tree item.

Argument	Type	Default	Description
other	FXTreeItem
item	FXTreeItem
notify	Bool	False

addItemBefore(other, text, oi=None, ci=None, notify=False)

Prepends a new tree item with the given text and optional icon prior to the other item.

Argument	Type	Default	Description
other	FXTreeItem
text	String
oi	FXIcon	None
ci	FXIcon	None
notify	Bool	False

addItemBefore(other, item, notify=False)

Prepends the new item prior to the other tree item.

Argument	Type	Default	Description
other	FXTreeItem
item	FXTreeItem
notify	Bool	False

addItemFirst(p, text, oi=None, ci=None, notify=False)

Prepends a new tree item with the given text and optional icon as the first child of the parent.

Argument	Type	Default	Description
p	FXTreeItem
text	String
oi	FXIcon	None
ci	FXIcon	None
notify	Bool	False

addItemFirst(p, item, notify=False)

Prepends the new tree item as first child of parent.

Argument	Type	Default	Description
p	FXTreeItem
item	FXTreeItem
notify	Bool	False

addItemLast(p, text, oi=None, ci=None, notify=False)

Appends a new tree item with the given text and optional icon as the last child of the parent.

Argument	Type	Default	Description
p	FXTreeItem
text	String
oi	FXIcon	None
ci	FXIcon	None
notify	Bool	False

addItemLast(p, item, notify=False)

Appends the new tree item as the last child of the parent.

Argument	Type	Default	Description
p	FXTreeItem
item	FXTreeItem
notify	Bool	False

addList(text, opts=AFXTREETABLE_LIST_NORMAL)

Adds a list that have only text items to the table and returns the list ID. The text strings of the list items are delimited by tab "\t" characters in the given text. The list is used by items of type LIST.

Argument	Type	Default	Description
text	String		Tab "\t" delimited text string (e.g. "0\t50\t100\t150").
opts	Int	AFXTREETABLE_LIST_NORMAL	Options.

addList(opts=AFXTREETABLE_LIST_NORMAL)

Adds a list to the table and returns the list ID. The list is used by items of type LIST.

Argument	Type	Default	Description
opts	Int	AFXTREETABLE_LIST_NORMAL	List flag.

appendListItem(listId, text, icon=None)

Appends an item to the specified table list; returns the index of the new item.

Argument	Type	Default	Description
listId	Int		ID of the list to append to.
text	String		Item's text.
icon	FXIcon	None	Item's icon.

beginEdit(item, column)

Sets the specified item in edit mode if the item is editable.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.

cancelEdit()

Cancels the edit mode.

clearContents(startItem, startColumn, endItem, endColumn, clearEditableOnly=True)

Clears the text in the items in the specified range.

Argument	Type	Default	Description
startItem	FXTreeItem		Tree item in which to start clearing.
startColumn	Int		Column in which to start clearing.
endItem	FXTreeItem		Tree item in which to end clearing.
endColumn	Int		Column in which to end clearing.
clearEditableOnly	Bool	True	Specify True to clear the text of editable items only.

clearItems(notify=False)

Removes all tree items and table rows.

Argument	Type	Default	Description
notify	Bool	False

clearListItems(listId)

Removes all items from the specified table list.

Argument	Type	Default	Description
listId	Int		ID of the list to clear.

closeItem(item, notify=False)

Closes the specified item.

Argument	Type	Default	Description
item	FXTreeItem
notify	Bool	False

collapseTree(item, notify=False)

Collapses the specified item to hide its children.

Argument	Type	Default	Description
item	FXTreeItem
notify	Bool	False

deleteColumns(startColumn, numColumns=1, notify=False)

Deletes columns starting at the specified column.

Argument	Type	Default	Description
startColumn	Int		Starting column.
numColumns	Int	1	Number of columns to delete.
notify	Bool	False	Specify True to notify target of the deletion.

deselectItem(item, column, notify=False)

Deselects the specified item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.
notify	Bool	False

deselectRow(item, notify=False)

Deselects all items in the row.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
notify	Bool	False

expandTree(item, notify=False)

Expands the specified item to show its children.

Argument	Type	Default	Description
item	FXTreeItem
notify	Bool	False

getColumnWidth(column)

Returns the width, in pixels, of the specified column.

Argument	Type	Default	Description
column	Int		Column index.

getCurrentColumn()

Returns the column index of the current item.

getCurrentItem()

Returns the current item, if any.

getDefaultColumnWidth()

Returns the default column width, in pixels, of the table.

getDefaultHeight()

Return default height.

Reimplemented from FXScrollArea.

getDefaultWidth()

Return default width.

Reimplemented from FXScrollArea.

getFirstItem()

Returns the first root tree item.

getItemBoolValue(item, column)

Returns the value of a table item of type BOOL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemCheck(item)

Returns the item checked state.

Argument	Type	Default	Description
item	FXTreeItem

getItemClosedIcon(item)

Returns the tree item's closed icon.

Argument	Type	Default	Description
item	FXTreeItem

getItemColor(item, column)

Returns the color of a table item of type COLOR. The color is "As is", "Default", or a color hex specification in the form of "RRGGBB" (e.g., "#0A1B2C").

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemFloatValue(item, column)

Returns the value of a table item of type FLOAT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemFormat(item, column)

Returns the format of a table item of type REAL (see RealFormat).

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemIcon(item, column)

Returns the icon of a table item of type ICON.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemIntValue(item, column)

Returns the value of a table item of type INT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemListId(item, column)

Returns the list ID of a table item of type LIST.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemListIndex(item, column)

Returns the list index (selection) of a table item of type LIST.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemNumDigits(item, column)

Returns the number of digits to the left of the decimal point for a table item of type REAL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemOpenIcon(item)

Returns the tree item's open icon.

Argument	Type	Default	Description
item	FXTreeItem

getItemPrecision(item, column)

Returns the precision for a table item of type REAL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemText(item, column)

Returns the text of an item of type TEXT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.

getItemType(item, column)

Returns the type of a table item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getItemValue(item, column)

Returns the text-form value of a table item of any type.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

getLastItem()

Returns the last root tree item.

getListItemIcon(listId, index)

Returns the icon of the item at the specified index of the specified table list.

Argument	Type	Default	Description
listId	Int		ID of the list.
index	Int		Index into the list of the item to return.

getListItemIndex(listId, icon)

Returns the index of the item of the specified table list that has the specified icon. Returns -1 if no such item exists.

Argument	Type	Default	Description
listId	Int		ID of the list.
icon	FXIcon		Icon.

getListItemIndex(listId, text)

Returns the index of the item of the specified table list that has the specified text. Returns -1 if no such item exists.

Argument	Type	Default	Description
listId	Int		ID of the list.
text	String		Text.

getListItemText(listId, index)

Returns the text of the item at the specified index of the specified table list.

Argument	Type	Default	Description
listId	Int		ID of the list.
index	Int		Index into the list of the item to return.

getNumColumns()

Returns the number of columns.

getNumItems()

Returns the number of items.

getNumListItems(listId)

Returns the number of items in the specified table list.

Argument	Type	Default	Description
listId	Int		ID of the list.

getTableStyle()

Returns the options related only to the table.

getTreeColumn()

Returns the column index of the tree.

getVisibleColumns()

Returns the number of visible columns.

getVisibleItems()

Returns the number of visible items.

insertColumns(startColumn, numColumns=1, notify=False)

Inserts columns at the specified location.

Argument	Type	Default	Description
startColumn	Int		Starting column.
numColumns	Int	1	Number of columns to insert.
notify	Bool	False	Specify True to notify target of the insertion.

isAnyItemInColumnSelected(column)

Returns True if any item in the column is selected.

Argument	Type	Default	Description
column	Int		Column index.

isAnyItemInRowSelected(item)

Returns True if any item in the row is selected.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.

isColumnSelected(column)

Returns True if all items in the column are selected.

Argument	Type	Default	Description
column	Int		Column index.

isItemBool(item, column)

Returns True if the specified table item is of type BOOL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemColor(item, column)

Returns True if the specified table item is of type COLOR.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemEditable(item, column)

Returns True if the table item is editable.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemEmpty(item, column)

Returns True if the specified table item does not have a value.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemExpanded(item)

Returns True if the tree item is expanded, False otherwise.

Argument	Type	Default	Description
item	FXTreeItem

isItemFloat(item, column)

Returns True if the specified table item is of type FLOAT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemIcon(item, column)

Returns True if the specified table item is of type ICON.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemInt(item, column)

Returns True if the specified table item is of type INT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemLeaf(item)

Returns True if the tree item is a leaf-item (has no children), False otherwise.

Argument	Type	Default	Description
item	FXTreeItem

isItemList(item, column)

Returns True if the specified tabl eitem is of type LIST.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemOpened(item)

Returns True if the tree item is opened, False otherwise.

Argument	Type	Default	Description
item	FXTreeItem

isItemSelected(item, column)

Returns True if the specified item is selected.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.

isItemText(item, column)

Returns True if the specified table item is of type TEXT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.

isItemVisible(item, column)

Returns True if the specified item is visible.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.

isRowSelected(item)

Returns True if all items in the row are selected.

Argument	Type	Default	Description
item	FXTreeItem

killSelection(notify=False)

Deselects all items.

Argument	Type	Default	Description
notify	Bool	False

makePositionVisible(item, column)

Scrolls to make the specified row, column fully visible.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.

makeRowVisible(item)

Scrolls vertically (only) to make the specified row fully visible.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.

openItem(item, notify=False)

Opens the specified item.

Argument	Type	Default	Description
item	FXTreeItem
notify	Bool	False

removeItem(item, notify=False)

Removes the specified tree item and corresponding table row.

Argument	Type	Default	Description
item	FXTreeItem
notify	Bool	False

removeItems(from, to, notify=False)

Removes the specified tree items and their corresponding table rows, inclusively.

Argument	Type	Default	Description
from	FXTreeItem
to	FXTreeItem
notify	Bool	False

removeListItem(listId, index)

Removes the item at the specified index from the specified table list; returns the number of items remaining in list.

Argument	Type	Default	Description
listId	Int		ID of the list to remove from.
index	Int		Index of the list item to remove.

selectItem(item, column, notify=False)

Selects the specified item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.
notify	Bool	False

selectRow(item, notify=False)

Selects all items in the row.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
notify	Bool	False

setColumnBoolIcons(column, trueIcon=None, falseIcon=None)

Sets the True and False icons of all existing and future table items in a column of type BOOL. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
trueIcon	FXIcon	None	Icon displayed when value is True; 0 = default icon.
falseIcon	FXIcon	None	Icon displayed when value is False; 0 = default icon.

setColumnBoolValue(column, value)

Sets the value of all existing and future table items in a column of type BOOL. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
value	Bool		Specify True or False.

setColumnColor(column, color)

Sets the color of all existing and future table items in a column of type COLOR. The color can be "As is", "Default", a color hex specification in the form of "RRGGBB" (e.g., "#0A1B2C"), or a pre-defined color name (e.g., "Red"). Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
color	String		Color.

setColumnColorItemDefault(column, color)

Sets the color of the color item in the flyout menu for all existing and future table items that display "As is" or "Default" in a column of type COLOR. The color is either a color hex specification in the form of "RRGGBB" (e.g., "#0A1B2C") or a pre-defined color name (e.g., "Red"). Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
color	String		Color.

setColumnColorOptions(column, opts)

Sets the color flyout options for all existing and future table items in a column of type COLOR. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
opts	Int		Options (see ColorFlyoutOptions).

setColumnEditable(column, editable)

Sets the editability of all existing and future table items in a column. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
editable	Bool		Specify True for editable, False for read-only.

setColumnFloatValue(column, value)

Sets the value of all existing and future table items in a column of type FLOAT. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
value	Float		Floating-point value.

setColumnFormat(column, format)

Sets the real format for all existing and future table items in a column of type REAL.

Argument	Type	Default	Description
column	Int		Table column index.
format	Int		Default format of REAL values in column (see RealFormat).

setColumnIcon(column, icon=None)

Sets the icon of all existing and future table items in a column of type ICON. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
icon	FXIcon	None	Icon.

setColumnIntValue(column, value)

Sets the value of all existing and future table items in a column of type INT. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
value	Int		Integer value.

setColumnJustify(column, justify)

Sets the justification of all existing and future table items in a column. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
justify	Int		Justification (see ItemJustify).

setColumnListId(column, listId)

Sets the list ID of all existing and future table items in a column of type LIST. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
listId	Int		List ID.

setColumnListIndex(column, index)

Sets the list index (selection) of all existing and future table items in a column of type LIST. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
index	Int		Index of item to be selected.

setColumnNumDigits(column, numDigits)

Sets the number of digits to the left of the decimal point for all existing and future table items in a column of type REAL.

Argument	Type	Default	Description
column	Int		Table column index.
numDigits	Int		Default number of digits the left of the decimal point.

setColumnPrecision(column, precision)

Sets the precision for all existing and future table items in a column of type REAL.

Argument	Type	Default	Description
column	Int		Table column index.
precision	Int		Number of digits to the right of the decimal point.

setColumnText(column, text)

Sets the text of all existing and future table items in a column of type TEXT. Specifying -1 for the column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
text	String		Text.

setColumnType(column, type)

Sets the type of a column. Specifying -1 for the table column will change all columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Table column index.
type	Int		Type (see Flags for item types).

setColumnWidth(column, width)

Sets the width, in pixels, of the specified column. Specifying -1 for the column will change all non-leading and non-trailing columns in the table and set the default for the table. Specify -1 for the width will resize each specified column to best fit the width of the title(s) currently shown in its leading and trailing items.

Argument	Type	Default	Description
column	Int		Column index.
width	Int		Width in pixels.

setColumnWidthInChars(column, numChars)

Sets the width, in number of characters, of the specified column. Specifying -1 for the column will change all non-leading and non-trailing columns in the table and set the default for the table.

Argument	Type	Default	Description
column	Int		Column index.
numChars	Int		Width in number of characters.

setCurrentItem(item, column, notify=False)

Sets the current item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.
notify	Bool	False

setDefaultBoolIcons(trueIcon=None, falseIcon=None)

Sets the default True and False icons for the table (0 = default icon).

Argument	Type	Default	Description
trueIcon	FXIcon	None	Icon displayed when value is True; 0 = default icon.
falseIcon	FXIcon	None	Icon displayed when value is False; 0 = default icon.

setDefaultBoolValue(value)

Sets the default bool value for the table.

Argument	Type	Default	Description
value	Bool		Specify True or False.

setDefaultColor(color)

Sets the default color for all items of type COLOR in the table. The color can be "As is", "Default", a color hex specification in the form of "RRGGBB" (e.g., "#0A1B2C"), or a pre-defined color name (e.g., "Red").

Argument	Type	Default	Description
color	String		Color.

setDefaultColumnWidth(width)

Sets the default width, in pixels, for all columns.

Argument	Type	Default	Description
width	Int		Width in pixels.

setDefaultFloatValue(value)

Sets the default floating-point value for the table.

Argument	Type	Default	Description
value	Float		Floating-point value.

setDefaultFormat(format)

Sets the default real format for the table.

Argument	Type	Default	Description
format	Int		Format flag.

setDefaultIntValue(value)

Sets the default integer value for the table.

Argument	Type	Default	Description
value	Int		Integer value.

setDefaultJustify(justify)

Sets the default justification for the table.

Argument	Type	Default	Description
justify	Int		Justification (see ItemJustify).

setDefaultNumDigits(numDigits)

Sets the default number of digits to the left of the decimal point for the table.

Argument	Type	Default	Description
numDigits	Int		Number of digits.

setDefaultPrecision(precision)

Sets the precision for the table.

Argument	Type	Default	Description
precision	Int		Precision.

setDefaultText(text)

Sets the default text for the table.

Argument	Type	Default	Description
text	String		Text.

setDefaultType(type)

Sets the default type for the table.

Argument	Type	Default	Description
type	Int		Type (see Flags for item types).

setItemBoolIcons(item, column, trueIcon=None, falseIcon=None)

Sets the True and False icons of a table item of type BOOL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
trueIcon	FXIcon	None	Icon displayed when value is True; 0 = default icon.
falseIcon	FXIcon	None	Icon displayed when value is False; 0 = default icon.

setItemBoolValue(item, column, value)

Sets the value of a table item of type BOOL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
value	Bool		Specify True or False.

setItemCheck(item, check, notify=False)

Sets the item checked state. Valid states are True, False and MAYBE. Returns True if the check value has changed, False otherwise.

Argument	Type	Default	Description
item	FXTreeItem
check	Int
notify	Bool	False

setItemClosedIcon(item, icon)

Changes the tree item's closed icon.

Argument	Type	Default	Description
item	FXTreeItem
icon	FXIcon

setItemColor(item, column, color)

Sets the color of a table item of type COLOR. The color can be "As is", "Default", a color hex specification in the form of "RRGGBB" (e.g., "#0A1B2C"), or a pre-defined color name (e.g., "Red").

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
color	String		Color.

setItemEditable(item, column, editable)

Sets the editability of a table item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
editable	Bool		Specify True for editable, False for read-only.

setItemFloatValue(item, column, value)

Sets the value of a table item of type FLOAT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
value	Float		Floating-point value.

setItemFormat(item, column, format)

Sets the format for a table item of type REAL (see RealFormat).

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Table column index of item.
format	Int		Format of table item (see RealFormat).

setItemIcon(item, column, icon=None)

Sets the icon of a table item of type ICON.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
icon	FXIcon	None	Icon.

setItemIntValue(item, column, value)

Sets the value of a table item of type INT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
value	Int		Integer value.

setItemJustify(item, column, justify)

Sets the justification of an item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
justify	Int		Justification (see ItemJustify).

setItemListId(item, column, listId)

Sets the list ID of a table item of type LIST.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
listId	Int		List ID.

setItemListIndex(item, column, index)

Sets the list index (selection) of a table item of type LIST.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
index	Int		Index of item to be selected.

setItemNumDigits(item, column, numDigits)

Sets the number of digits to the left of the decimal point for a table item of type REAL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
numDigits	Int		Number of digits.

setItemOpenIcon(item, icon)

Sets the tree item's open icon.

Argument	Type	Default	Description
item	FXTreeItem
icon	FXIcon

setItemPrecision(item, column, precision)

Sets the precision for a table item of type REAL.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
precision	Int		Number of digits to the right of the decimal point.

setItemText(item, column, text)

Sets the text of an item of type TEXT.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of item.
text	String		Text.

setItemType(item, column, type)

Sets the type of a table item.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
type	Int		Type (see Flags for item types).

setItemValue(item, column, valueText)

Sets the value of a table item of any type that can interpret a text string for its value. Returns True if the value of the specified item is set successfully.

Argument	Type	Default	Description
item	FXTreeItem		Tree item.
column	Int		Column index of table item.
valueText	String		Text-form value of table item.

setLeadingRowLabels(str)

Set the labels of the leading row. Note: this API must be used to set the header row labels, otherwise labels will be overwritten by auto-numbering.

Argument	Type	Default	Description
str	String		Tab "\t" delimited list, can also contain newline characters indicating that label contains multiple lines of text (e.g. "Young's\nModulus\tPoisson's\nRatio").

setListMaxVisible(maxVisible)

Sets the maximum number of visible items for all table lists.

Argument	Type	Default	Description
maxVisible	Int		Maximum number of visible items.

setTableStyle(style)

Sets the table options.

Argument	Type	Default	Description
style	Int		Style flag (see Flags for AFX table options).

setVisibleColumns(visibleColumns)

Sets the number of visible columns.

Argument	Type	Default	Description
visibleColumns	Int		Number of visible columns.

setVisibleItems(visibleItems)

Sets the number of visible items.

Argument	Type	Default	Description
visibleItems	Int		Number of visible items.

shadeReadOnlyItems(shadeItems)

Makes the table to use a different, typically shaded, background color for read-only items if True is passed to the method. The table would use the same regular background color for both editable and read-only items if False is passed to the method.

Argument	Type	Default	Description
shadeItems	Bool		Specify True to use a different background color for read-only items.

Class flags

Flags for color flyouts (used for items of type COLOR).

COLOR_INCLUDE_COLOR_ONLY	Color item has no As Is and Default in its flyout.
COLOR_INCLUDE_AS_IS	Color item has As Is in its flyout.
COLOR_INCLUDE_DEFAULT	Color item has Default in its flyout.
COLOR_INCLUDE_ALL	Color item has both As Is and Default in its flyout. This is the default option.

Flags for item alignment.

REAL	Not yet implemented (Real).
LEFT	Left justified.
RIGHT	Right justified.
CENTER	Center justified (horizontal).
TOP	Top justified.
BOTTOM	Bottom justified.
MIDDLE	Middle justified (vertical).

Flags for item types.

TEXT	Item accepts a text string via a text field.
FLOAT	Item accepts a floating-point number via a text field.
INT	Item accepts an integer via a text field.
LIST	Item accepts input from a list.
BOOL	Item is a boolean; displayed as an icon.
ICON	Item displays an icon and does not accept input.
COLOR	Item accepts color selection via a color flyout.

Flags for real formats.

GENERAL	General.
SCIENTIFIC	Scientific.
AUTOMATIC	Automatic.

Global flags

Flags for AFX tree table options.

AFXTREETABLE_COLUMN_RESIZABLE	Allow users to resize columns.
AFXTREETABLE_NO_COLUMN_SELECT	Disallow column selections (selecting a header/footer item in a column selects the whole column).
AFXTREETABLE_ROW_MODE	Selecting any item in a row selects the whole row.
AFXTREETABLE_EXTENDED_SELECT	Use extended selection mode that allows multiple items to be selected and allows users to drag-select a range of items.
AFXTREETABLE_SINGLE_SELECT	Use single selection mode that allows up to one item to be selected.
AFXTREETABLE_BROWSE_SELECT	Use browse selection mode that enforces one single item to be selected at all times.
AFXTREETABLE_CHECK_BOXES	Show item check boxes.
AFXTREETABLE_PROPAGATE_CHECKS	Propagate checked state to children and parents.
AFXTREETABLE_NORMAL	Default table options--use extended selection mode, columns are resizable, and layout fills both X and Y directions.

Flags for the table's list (for items of type LIST).

AFXTREETABLE_LIST_PRESELECT_NONE

Do not pre-select any list item.
