3.10 Associating geometric faces created from an orphan mesh with the mesh

Product: Abaqus/CAE

Benefits: When you create a geometric face from orphan element faces in a part, Abaqus/CAE now associates the new face with the mesh by default.

Description: You can use the Geometry Edit toolset to create geometry from the faces of orphan mesh elements. By default, the new geometric face is associated with the mesh; you have the option to change this behavior, as shown in Figure 3–1.

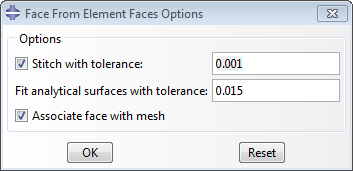

Figure 3–1 Options for creating geometric faces from orphan element faces.

Abaqus/CAE Usage:

Part module:
    ToolsGeometry Edit; Face: From element faces; Options: toggle Associate face with mesh

Reference:

Abaqus/CAE User's Guide

“Create face from element faces,” Section 69.7.10
