Product: Abaqus/CAE
Benefits: You can now create tabular reports of the resultant forces and moments in free body cuts from multiple frames. This enhancement is also available for free body cuts based on view cuts.

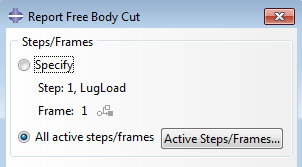

Description: When selecting options for free body cut reports, you can choose the frames from which Abaqus/CAE reads data, as shown in Figure 12–1. You can choose to use the current step/frame, all active steps/frames, or selected active steps/frames. For multiple frames, the time associated with each frame is included in the report.
Visualization module:
Report
Free Body Cut; All active steps/frames
